Board-X Ups Online 6Kva 5400W External Batteries 16X 12V Up To 150Ah 192Vdc
zoom_out_map
chevron_left chevron_right

Board-X Ups Online 6Kva 5400W External Batteries 16X 12V Up To 150Ah 192Vdc

-Power: 5400W
-Output: Input and output are single phase
-Frequency: 50/60HZ
-Voltage: 220V
-Battery: 16X 12V Up To 150Ah 192Vdc
-Standard communication options: RS232, USB, and relay output contacts or SNMP card

Create Account To View Prices!

By buying this product you can collect up to 540 loyalty points. Your cart will total 540 points that can be converted into a voucher of $5.40.




Best Price Guaranteed



Delivery all over Lebanon



Daily Updated Website

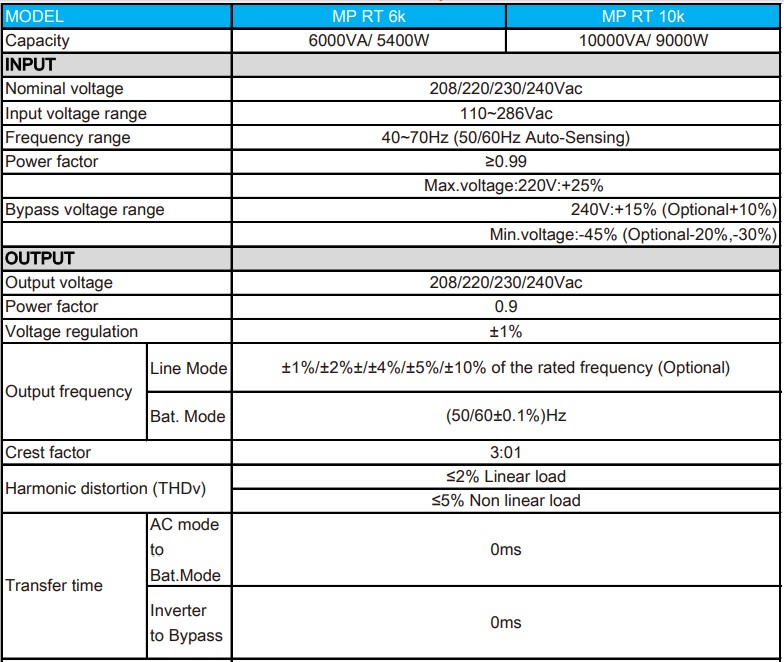

MODEL
MP RT 6k MP RT 10k
Capacity 6000VA/ 5400W 10000VA/ 9000W
INPUT
Nominal voltage 208/220/230/240Vac
Input voltage range 110~286Vac
Frequency range 40~70Hz (50/60Hz Auto-Sensing)
Power factor ≥0.99
  Max.voltage:220V:+25% (Optional+10%,+15%,+20%) 230V:+20% (Optional+10%,+15%,+20%)
Bypass voltage range 240V:+15% (Optional+10%)
  Min.voltage:-45% (Optional-20%,-30%)
OUTPUT
Output voltage 208/220/230/240Vac
Power factor 0.9
Voltage regulation ±1%
Output frequency Line Mode ±1%/±2%±/±4%/±5%/±10% of the rated frequency (Optional)
Bat. Mode (50/60±0.1%)Hz
Crest factor 3:01
Harmonic distortion (THDv) ≤2% Linear load
≤5% Non linear load
Transfer time AC mode to Bat.Mode 0ms
Inverter to Bypass 0ms

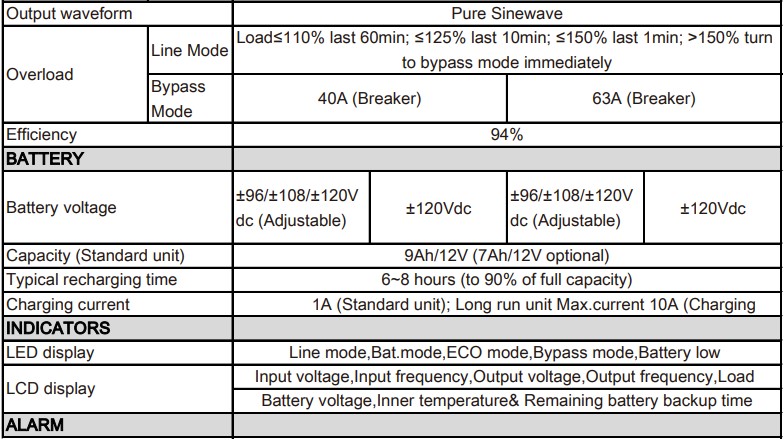

Output waveform Pure Sinewave
Overload Line Mode Load≤110% last 60min; ≤125% last 10min; ≤150% last 1min; >150% turn to bypass mode immediately
Bypass Mode 40A (Breaker) 63A (Breaker)
Efficiency 94%
BATTERY
Battery voltage ±96/±108/±120Vdc (Adjustable) ±120Vdc ±96/±108/±120Vdc (Adjustable) ±120Vdc
Capacity (Standard unit) 9Ah/12V (7Ah/12V optional)
Typical recharging time 6~8 hours (to 90% of full capacity)
Charging current 1A (Standard unit); Long run unit Max.current 10A (Charging current can be set according to battery capacity)
INDICATORS
LED display Line mode,Bat.mode,ECO mode,Bypass mode,Battery low voltage,Overload & UPS fault
LCD display Input voltage,Input frequency,Output voltage,Output frequency,Load percentage,
Battery voltage,Inner temperature& Remaining battery backup time
ALARM

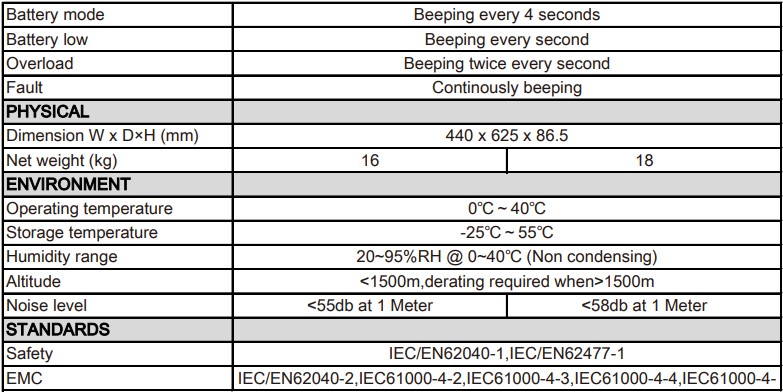

Battery mode Beeping every 4 seconds
Battery low Beeping every second
Overload Beeping twice every second
Fault Continously beeping
PHYSICAL
Dimension W x D×H (mm) 440 x 625 x 86.5
Net weight (kg) 16 18
ENVIRONMENT
Operating temperature 0℃~40℃
Storage temperature -25℃~55℃
Humidity range 20~95%RH @ 0~40℃ (Non condensing)
Altitude <1500m,derating required when>1500m
Noise level <55db at 1 Meter <58db at 1 Meter
STANDARDS
Safety IEC/EN62040-1,IEC/EN62477-1
EMC IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
UPS l24
Data sheet
Output Capacity
5400W
Battery
External
