Board-X Ups Online 2Kva 1800W External Battery 4X 12V Up To 150Ah 48Vdc

-Power: 1800W
-Output: Input and output are single phase
-Frequency: 50/60HZ
-Voltage: 220V
-Battery: 4X 12V Up To 150Ah 48Vdc
-Standard communication options: RS232, USB, and relay output contacts or SNMP card

Create Account To View Prices!

By buying this product you can collect up to 225 loyalty points. Your cart will total 225 points that can be converted into a voucher of $2.25.


Best Price Guaranteed


Delivery all over Lebanon


Daily Updated Website

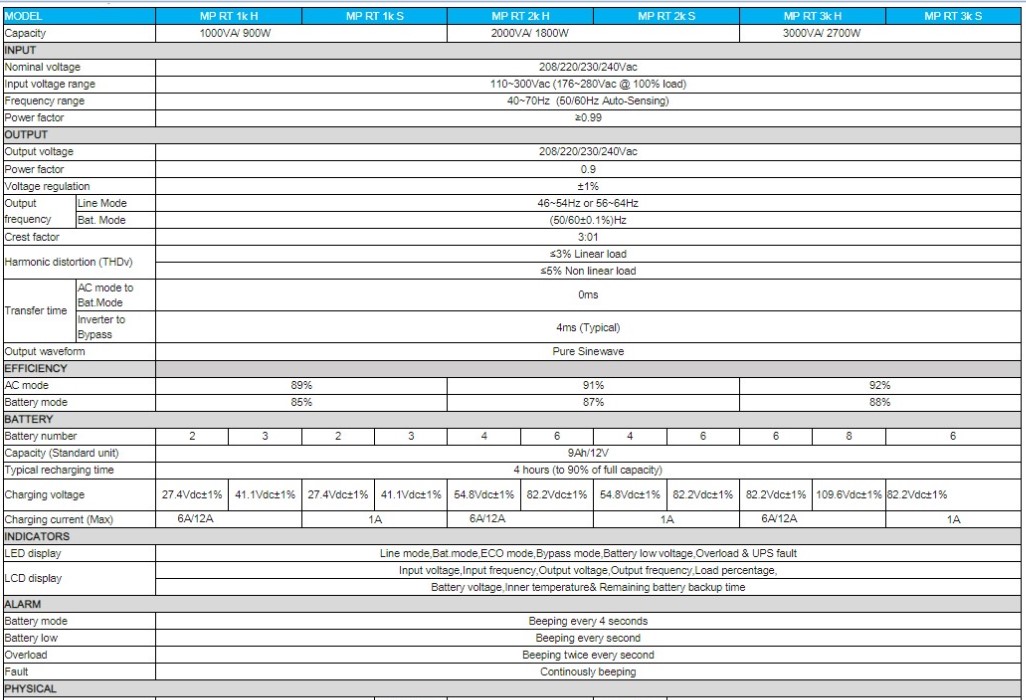

Technical Specification
MP 1k H MP 1k S MP 2k H MP 2k S MP 3k H MP 3k S
Capacity 1000VA/ 900W 2000VA/ 1800W 3000VA/ 2700W
Nominal voltage 208/220/230/240Vac
Input voltage range 110~300Vac (176~280Vac @ 100% load)
Frequency range 40~70Hz  (50/60Hz Auto-Sensing)
Power factor ≥0.99
Output voltage 208/220/230/240Vac
Power factor 0.9
Voltage regulation ±1%
Output frequency Line Mode 46~54Hz or 56~64Hz
Bat. Mode (50/60±0.1%)Hz
Crest factor 3:01
Harmonic distortion (THDv) ≤3% Linear load
≤5% Non linear load
Transfer time AC mode to Bat.Mode 0ms
Inverter to Bypass 4ms (Typical)
Output waveform Pure Sinewave
AC mode 88% 90% 91%
Battery mode 85% 87% 88%
Battery number 2 3 2 3 4 6 4 6 6 8 6
Capacity (Standard unit) 9Ah/12V
Typical recharging time 4 hours (to 90% of full capacity)
Charging voltage 27.4Vdc±1% 41.1Vdc±1% 27.4Vdc±1% 41.1Vdc±1% 54.8Vdc±1% 82.2Vdc±1% 54.8Vdc±1% 82.2Vdc±1% 82.2Vdc±1% 109.6Vdc±1% 82.2Vdc±1%
Charging current (Max) 6A/12A 1A 6A/12A 1A 6A/12A 1A
LED display Line mode,Bat.mode,ECO mode,Bypass mode,Battery low voltage,Overload & UPS fault
LCD display Input voltage,Input frequency,Output voltage,Output frequency,Load percentage,
Battery voltage,Inner temperature& Remaining battery backup time
Battery mode Beeping every 4 seconds
Battery low Beeping every second
Overload Beeping twice every second
Fault Continously beeping
Dimension W x D×H (mm) 144 x 293 x 209 144 x 399 x 209 191 x 460 x 337
Net weight (kg) 4.1 9.3 12.5 10 19.5 24.5 10 24.5
Operating temperature 0℃~40℃
Storage temperature -25℃~55℃
Humidity range 20~95%RH @ 0~40℃ (Non condensing)
Altitude <1500m,derating required when>1500m
Noise level <50db at 1 Meter
Safety IEC/EN62040-1,IEC/EN62477-1
EMC IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8

UPS l22
